MKS Gen V1.4+Stepper driver

B06
Price:
USD
$28.00
    Please select the information you wantX
  • Size:
    GEN-5pcsTMC2208
    GEN-5pcsTMC2100
    GEN-4pcsTMC2130
    GEN-5pcsLV8729
    GEN-5pcsDRV8825
    GEN-5pcsA4988
Quantity:
-
+
(38808 available)
  • Description
  • Reviews
Name:MKS GEN V1.4 Mainboard

MKS GEN is all in one mainboard based on 3d printer open source ,
which has been optimized and works in high & stable performance.
This board adopts high-end FT232 COM, which keeps data transfer stably.
Moreover, it performs motor puls and direction output pinout to assemble high current motor.
Besides, remains Servos,AUX-1,AUX-2 pinout and support 3*5v,3*12v.

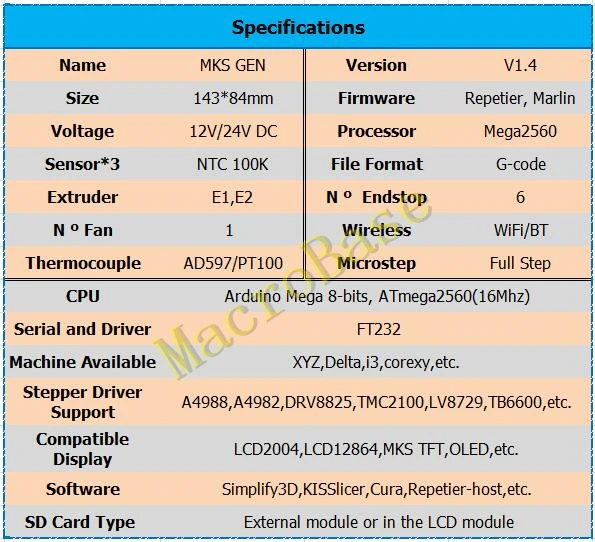

More features as follows:

gen





Packing List:

1pcs * MKS Gen V1.4
5pcs * Stepper driver (TMC2130 is 4pcs)
1pcs * USB
3pcs * Endstop
1pcs * Screwdriver

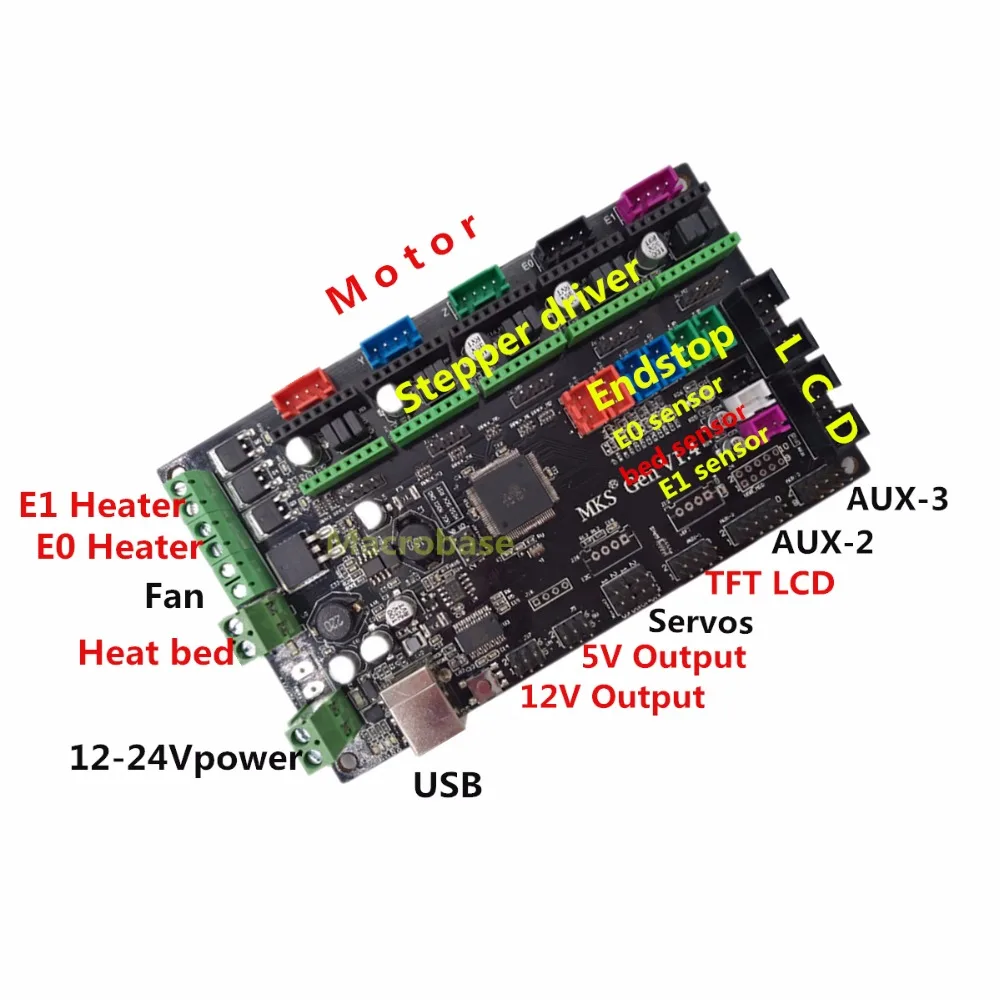

Wiring
GEN-

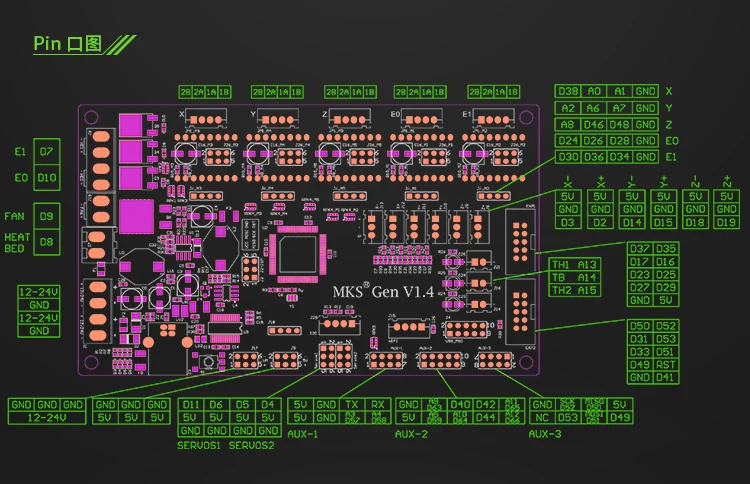

PINOUT

pinout-1


pin

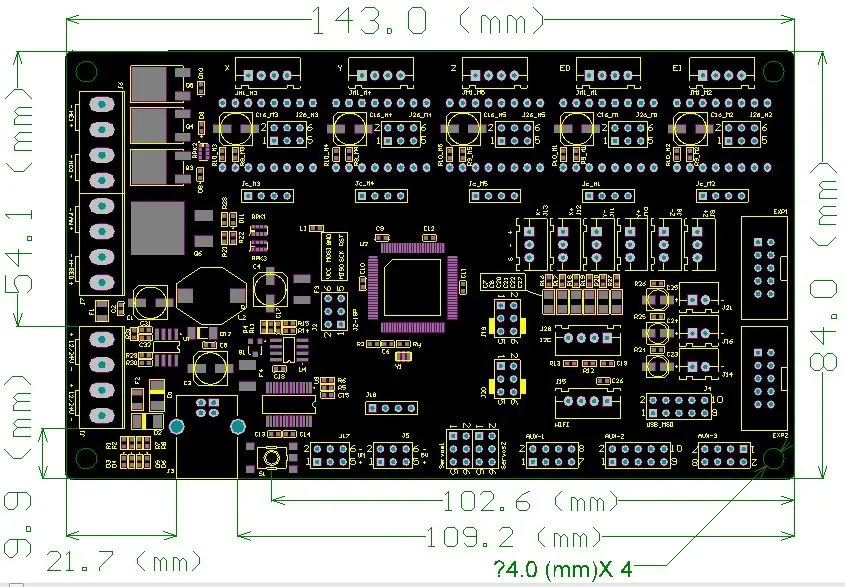

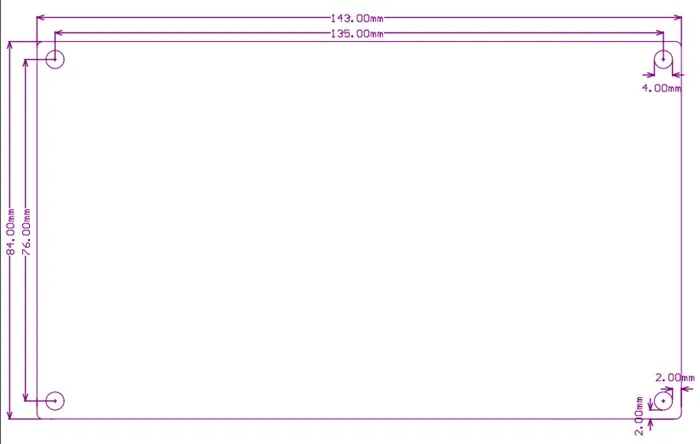

Size
size


How to Adjust Driver Current.

Caution!
Please mind the power polarity and  drivers direction.
Please don't put the drivers or motors on/off while power on.
Please disconnect all motors when adjust driver current.


A4988(1amp)
I= vref /1.6,default Vref 1.6V and 0.5A,Max1.0A.

A4988(2amp)
I= vref /0.8,default Vref 0.8V and 1.0A,Max2.0A.

DRV8825
I= vref *2, default 0.65A and 1.3A,Max 2.5A.

LV8729
I= vref /0.5, default 0.4A and 0.8A,Max 1.5A.


microstep


Following picture shows how to check the Vref.




rated current

Average rating:
Share your thoughts with other customers
Write a review
Product reviews can be carried out after the member login, please click here to login
